Summary: DIGITNOW 4K Video Capture Card, HDMI to USB3.0 Live Gamer Capture Card Full HD 1080P 60fps, Ultra-Low Latency for Streaming and Recording, Work with Nintendo Switch, PS5, PS4, Xbox One, PC
Product Description
Features:

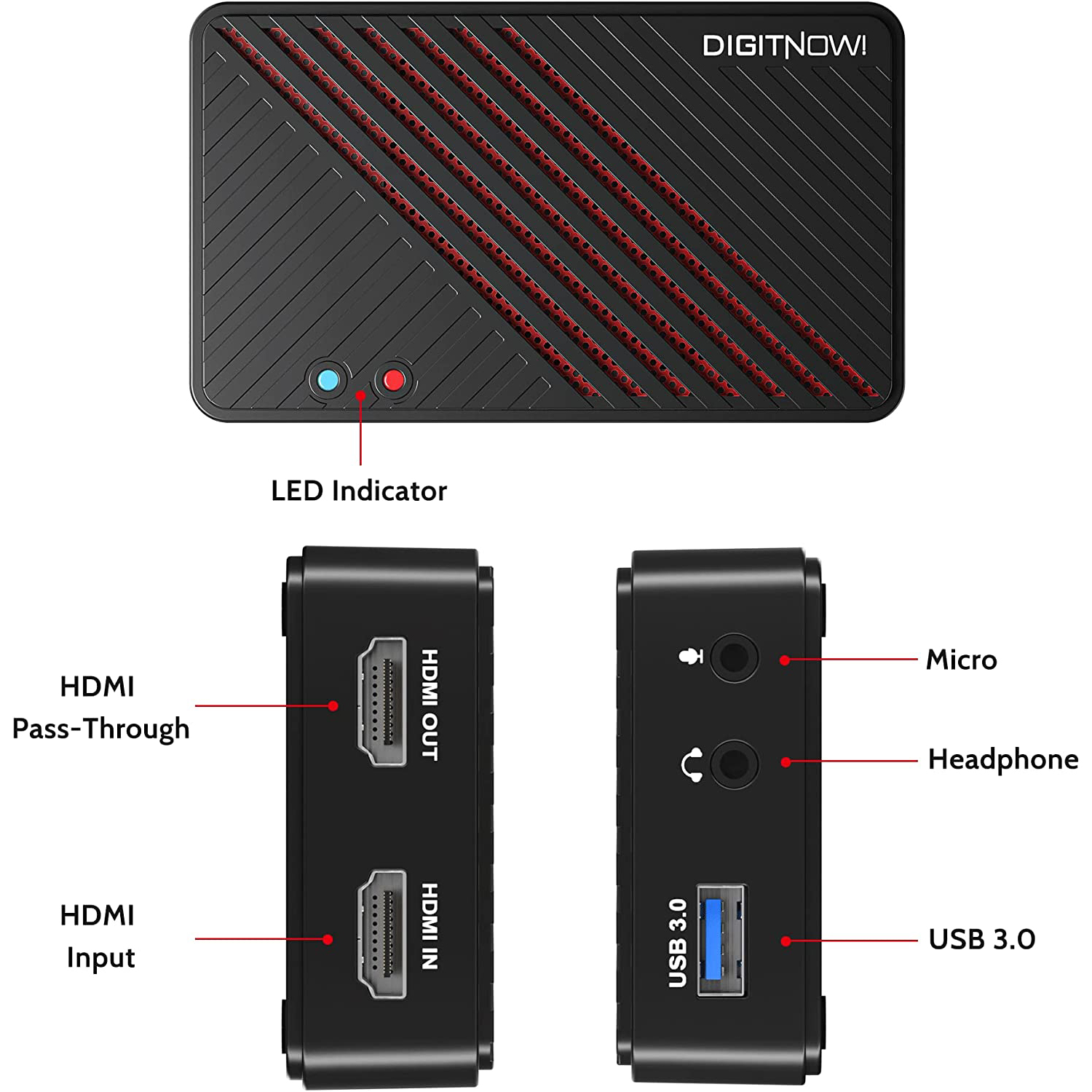

Support microphone audio input ,3.5 stereo output;
Support microphone audio and hdmi audio superimpose capture;
Support input max resolution 4K 60Hz;
Support capture max resolution 4K 30Hz;
Support most acquisition software, such as VLC, OBS, Amcap, etc;

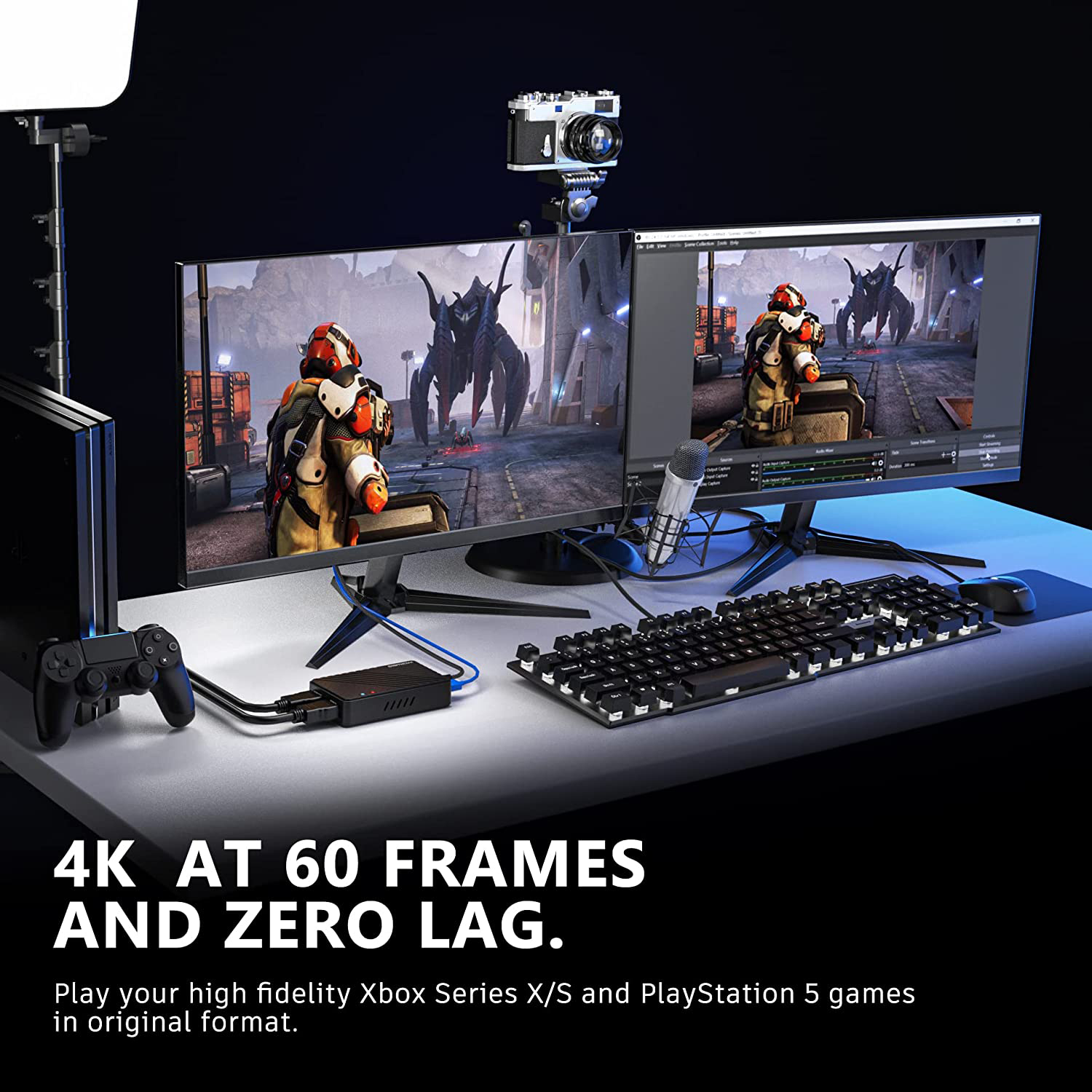

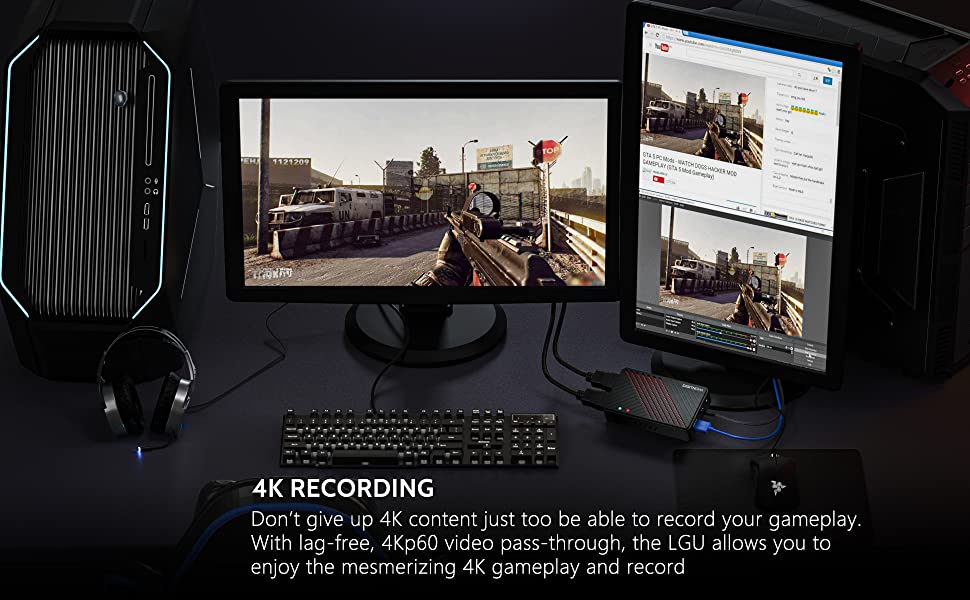

4KP 60 HD Mesmerizing Gameplay Quality
FULL HD Super Smooth Capture
High Frame Rate Zero-Lag Pass-Through
NV12 Format Real Color Lossless Recording

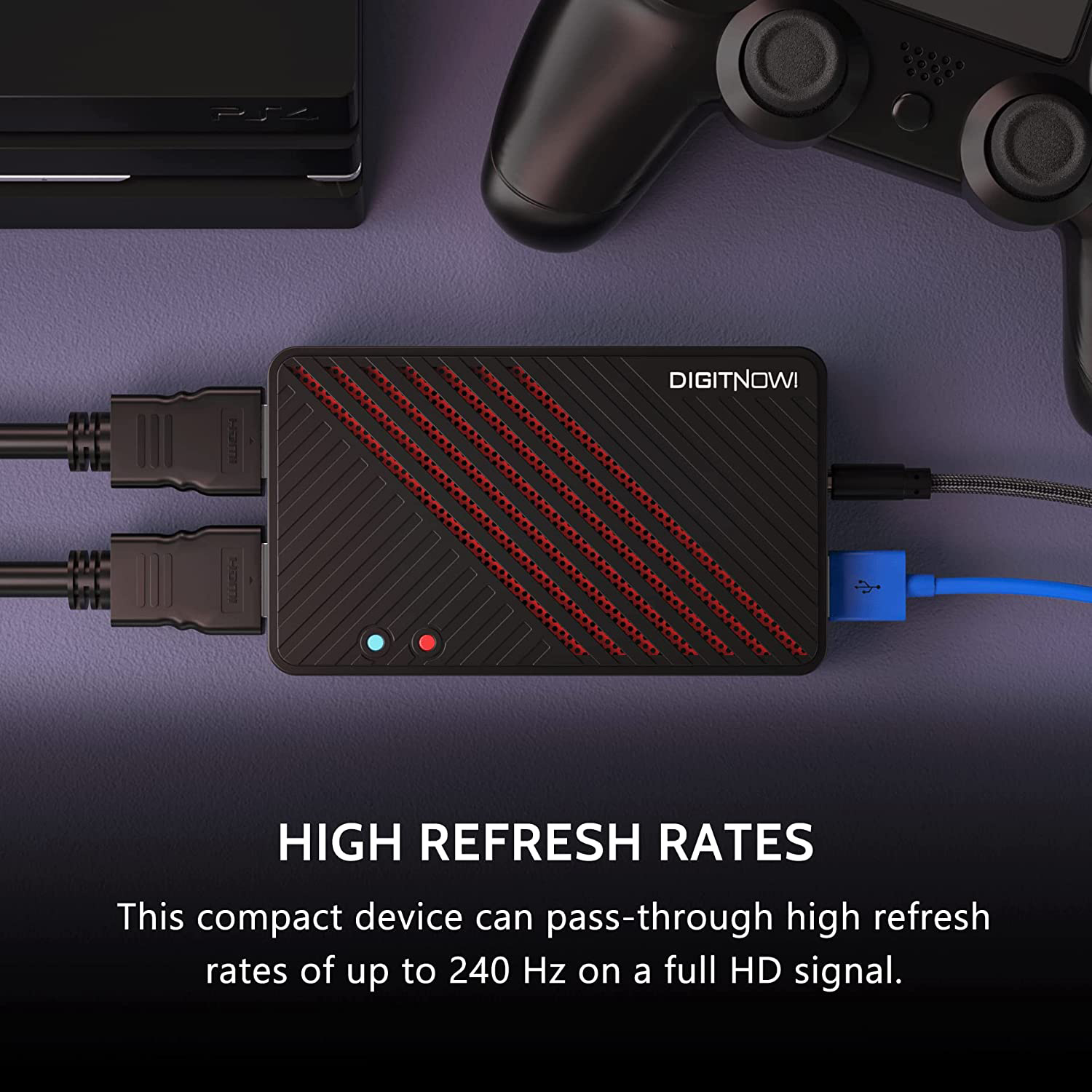

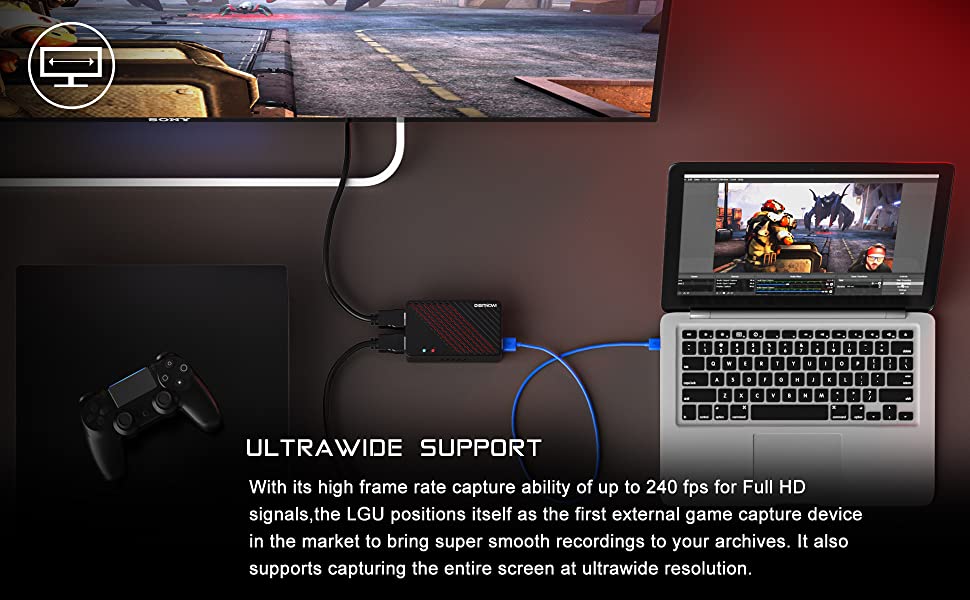

Not limited to 4K, this compact device can pass-through high refresh rates of up to 240 Hz on a Full HD signal..
QA
Q:You device display "Not support"?
1.The input setting resolution does not correspond to the acquisition setting resolution.(The input is 1920x1080P 60hz signal during acquisition, but the acquisition resolution has chosen 3840x2160 or 2560x1440.)
A:Solution: The input is 1920x1080P 60hz signal during acquisition, and the acquisition resolution is selected as 1920x1080P 60hz. (Resolution enhancement is not supported)
2.The input signal is 3840x2160 60hz during acquisition, but the acquisition resolution is chose 3840x2160 30hz.
A:Solution: The input is a 3840x2160 60hz signal during acquisition, and the acquisition resolution is selected 1920x1080P 60hz. (Because the video capture card only supports 3840x2160 30hz when the input signal is 3840x2160 30hz during acquisition)
Specifications
Interface | USB3.0 |
System Requirement | Windows 7,8,10, Mac OS 10.12 or above, Linux,Android 9 or above |
Desktop hardware requirements | CPU:Intel Core i5-6XXX or above. NVIDIA GeForce GTX 1060 or above. RAM:8G(Dual channels) |
Laptop hardware requirements | CPU:Intel Core i7-7700HQ or above. Graphics card:NVIDIA GeForce GTX 1050 Ti or above. RAM:8G(Dual channels) |
Video format | NV12, YUY2, XRGB/RGB32 |

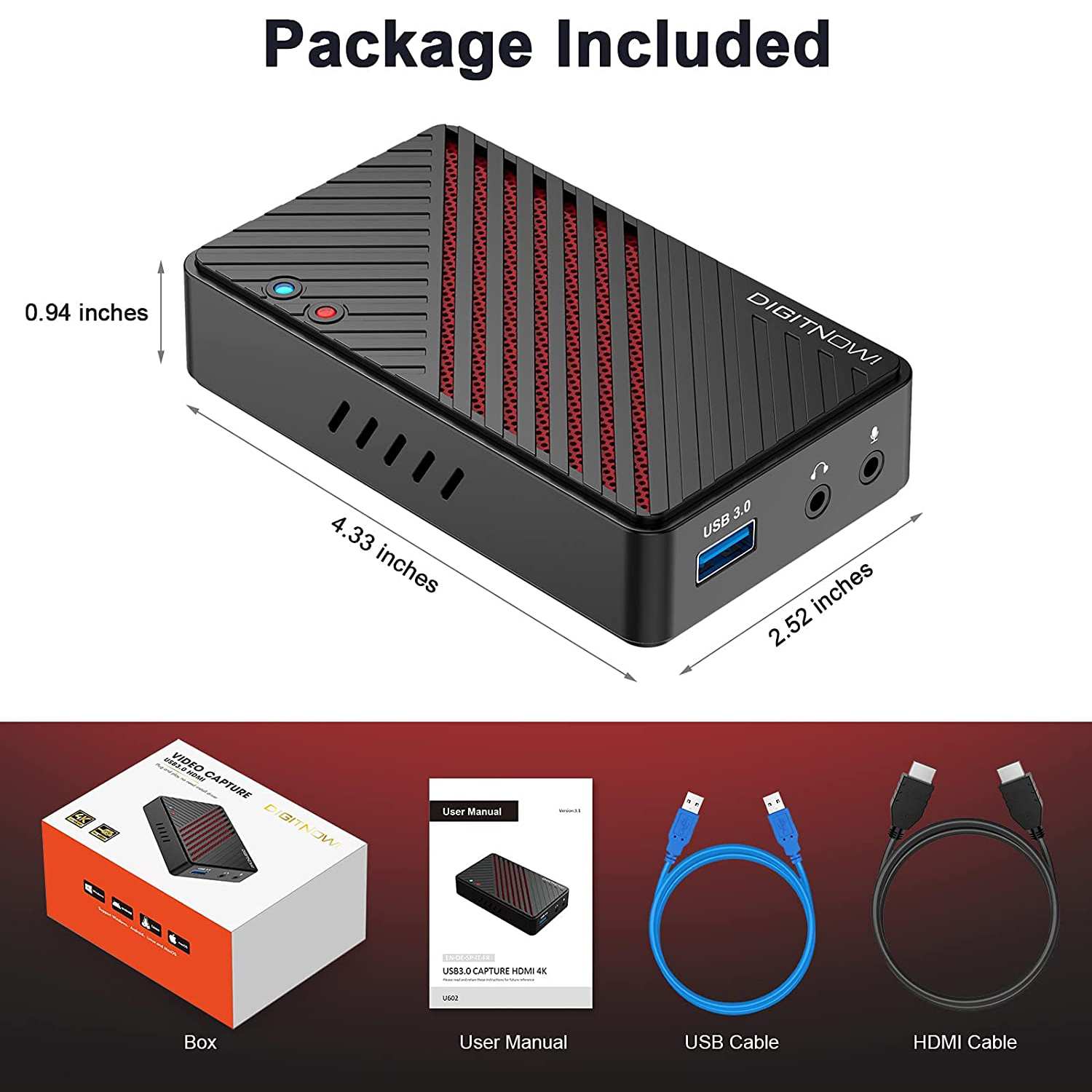

Package Content | DIGITNOW 4K Video Capture Device, USB 3.0 cable,HDMI cable, User manual |
